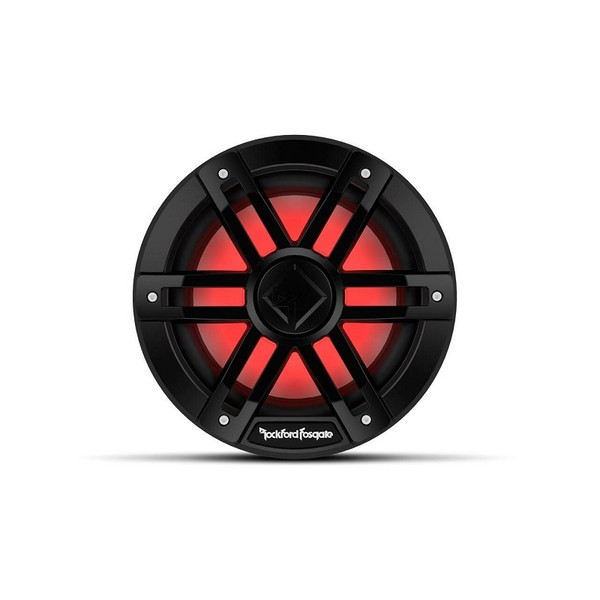

Kubota RTV M1 8" DVC 2-Ohm Color Optix Marine Subwoofer by Rockford

The Black and white Color Optix™ 8” DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.

The M2 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch.

Marine Subwoofer Features:

• Optixally clear UV stable RGB Lighting Encapsulation
• Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
• Vented motor design with water-repelling nano coated mesh screen
• 1.5" (39mm) High Temp Kapton™ Woofer Voice Coil Former
• Fully insulated silicone tinsel leads
• 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
• Zinc Nickel-plated Marine grade brass connection terminals
• Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
• Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
• Linear Synthetic Fiber Blend Spiders
• Santoprene VAST Surround
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• Co-molded surround and mineral filled polypropylene cone body
• VERSA impedance switch quickly allows series or parallel configuration without additional wiring

Specifications:

• Voice Coil Type - Dual Voice Coil
• Nominal Impedance (Ohms) - 1-Ohm or 4-Ohm Switchable
• Speaker Connector - Deutsch™
• Size - 8"
• Power Handling (Watts RMS) - 150 Watts RMS 600 Watts PEAK
• Frequency Response - 20 Hz - 750 Hz
• Magnet Weight (oz) - 17.72 oz. (0.50 Kg)
• Voice Coil Diameter - 1.5" (38.6 mm)
• Sd (cm2) - 227
• Le (mH) - 1.70
• Vas (Liters) - 15.7
• Qts - 0.90
• Qms - 12.3
• Qes - 0.98
• Cutout Diameter - 7.10 in. (180.4 mm)
• Mounting Depth - 3.43 in. (87.1 mm)
• Re (Ohms) - 3.2
• Fs (Hz) - 44.5
• SPL (dB @ 1w/1m) - 87.5
• Xmax (mm) - 7.0
• Woofer Displacement - 1.40 cu. ft. (0.05 Liters)
