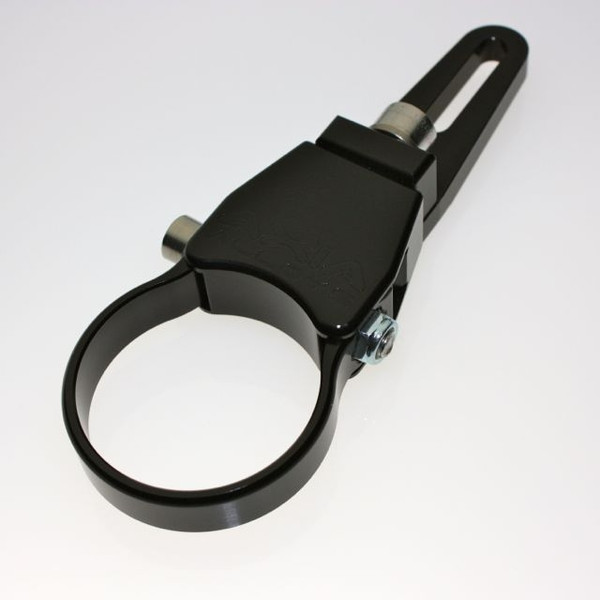

This 3/4 inch extended mount is for Rigid Industries end mount led light bars with 6mm or 1/4 inch fastener diameter (Other size slots available)
Requires 2 per light bar
6mm / 1/4 inch slot on L bracket can position you end mount light bar Between 2.45 inches and 3.55 inches from the leading edge of the mounting bar to the center of the mounting screw
These adjustable LED light bar mounting clamps are an excellent way to mount your Rigid Industries EDGE E Series and single row SR series light bars to your roll cage.
These pivoting clamps will allow you to mount up to a 50 inches light bar to your cage even if the your cage does not run parallel to the light bar.
A simple solution for mounting on bumpers, wakeboard towers as well.
Sold Each
Kubota RTV and General OEM Roll cage Dimensions:
If not Profile tubing then the Kubota RTVs use 1.75" roll cages.
2014 and older Kubota RTV Rear Harness Bar and Rear Bumper crossbars 1.5” (4 seat versions have a 1.25” rear top crossbar as well)
General (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps) 1.75” top crossbar only (rearview mount)
Ranger (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps) 1.75” rear harness bar only
Ranger Crew (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps) Use 9” Bolt On mirror for rearview
